USB 2.0 UCMOS Camera

Product Description

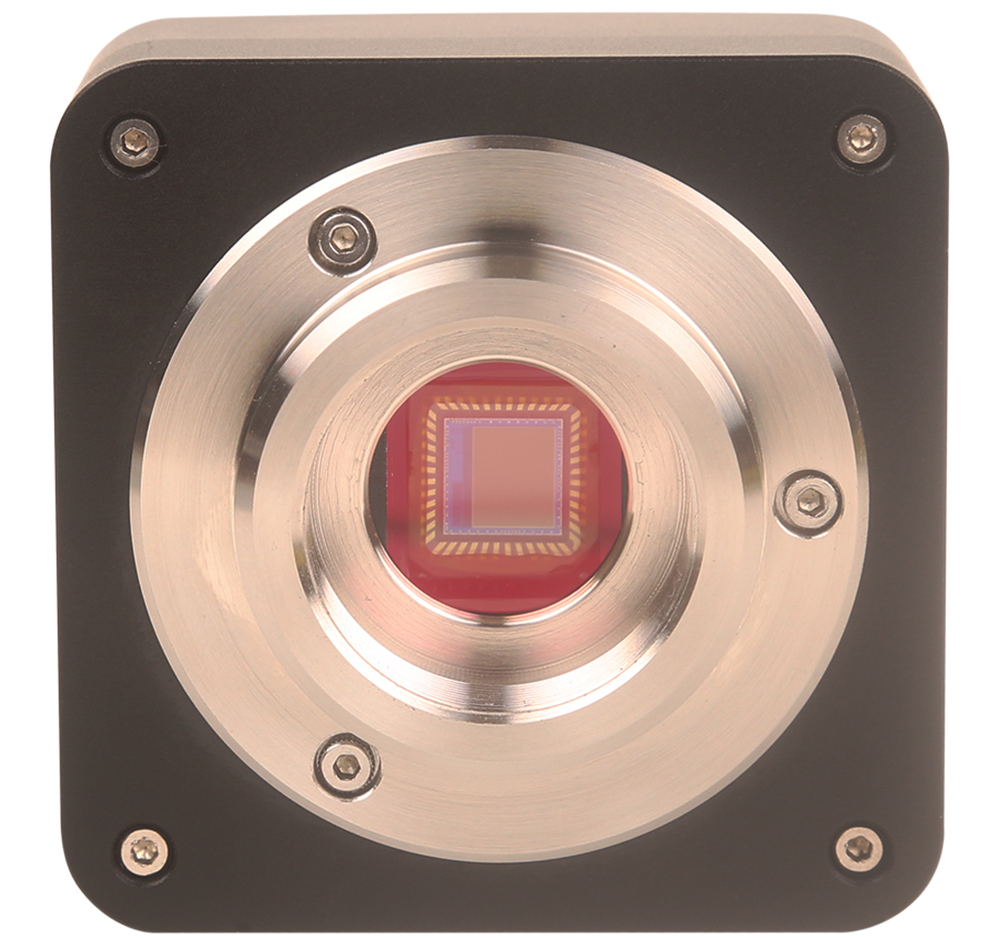

· Standard C-Mount camera with Aptina CMOS sensor;

· With hardware resolution among 0.35M to 14M;

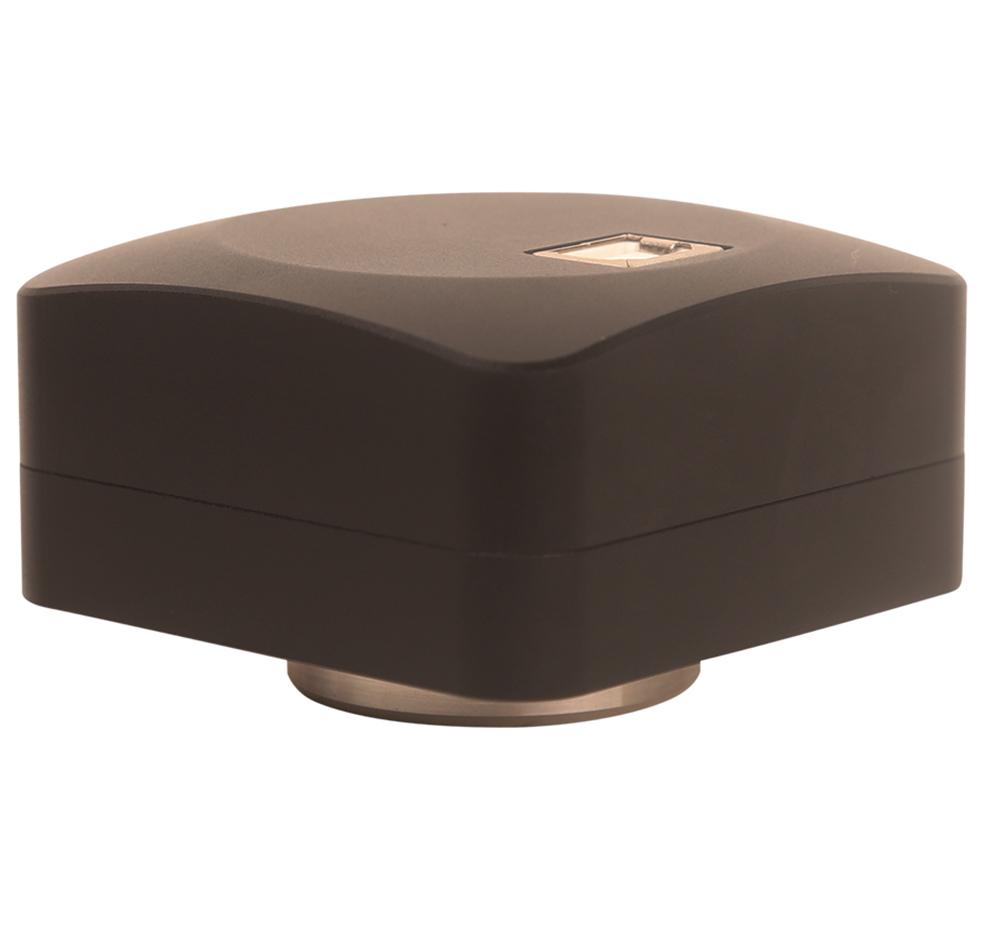

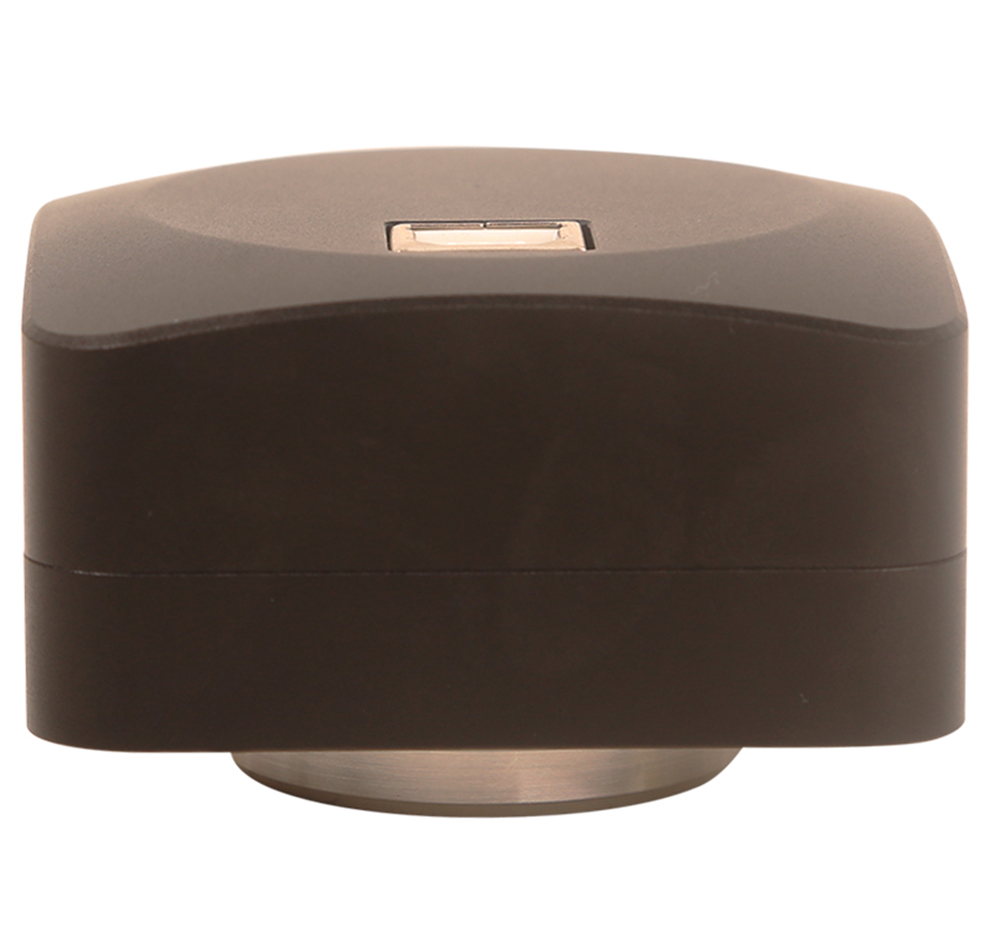

· Integrated zinc aluminum alloy housing;

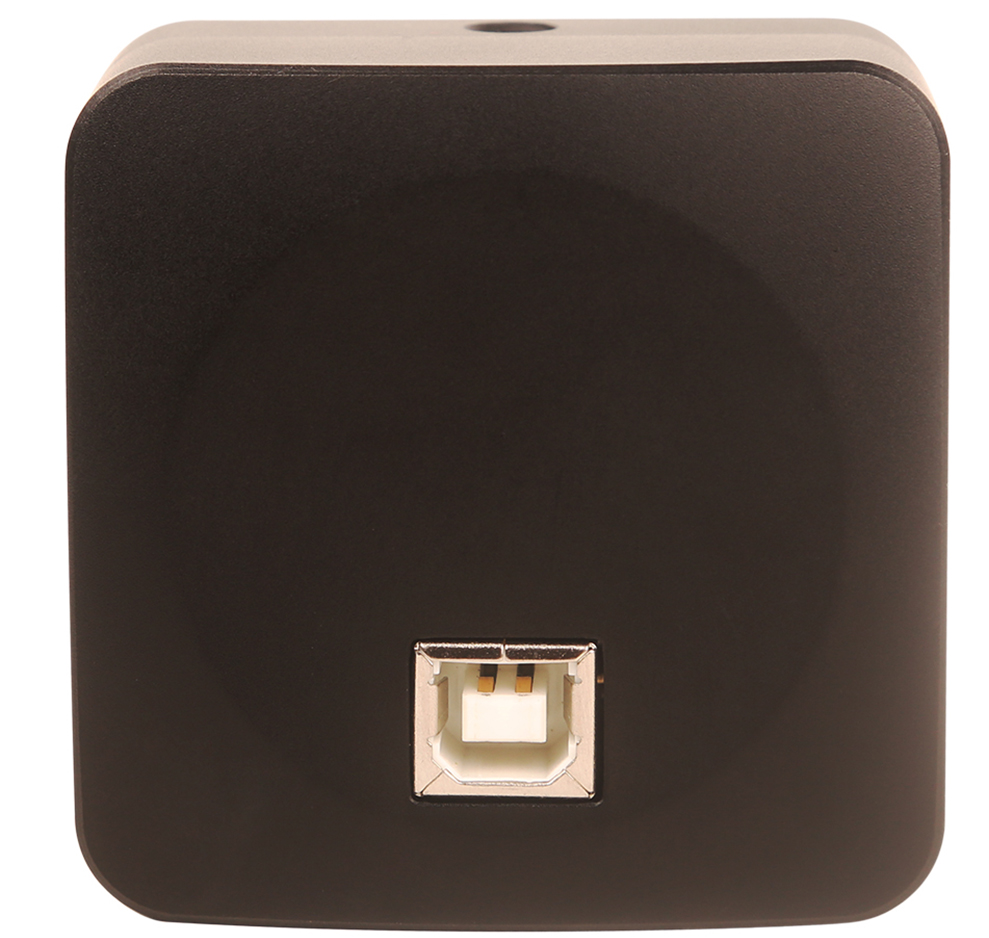

· USB2.0 interface ensuring high speed data transmission;

· Ultra-Fine color engine with perfect color reproduction capability;

· With advanced video & image processing application ;

· Providing Windows/Linux/OSX multiple platform SDK;

· Native C/C++, C#, DirectShow, Twain Control API;

UCMOS camera is an ultra-high performance CMOS camera and it adopts ultra-high performance CMOS sensor as the image-picking device. USB2.0 is used as the data transfer interface.

UCMOS camera hardware resolutions range from 0.35M to 14M and comes with the Integrated zinc aluminum alloy compact housing.

UCMOS comes with advanced video & image processing application; Providing Windows/Linux/OSX multiple platform SDK; Native C/C++, C#/VB.NET, DirectShow, Twain Control API;

The UCMOS can be widely used in brightfield light environment and microscope image capture and analysis with moderate frame rate.

Standard Specification
Optional Specification
Related Product
Download

MODEL	Sensor & Size(mm)	Pixel(μm)	G Sensitivity Dynamic Range SN Ratio	FPS/Resolution	Binning	Exposure (MS)
UCMOS14000KPA	14M/MT9F002(C) 1/2.3"(6.451x4.603)	1.4x1.4	0.724v/lux-sec 65.3dB 35.5dB	1.8@4096x3288 10@2048x1644 27@1024x822	1x1,2x2,4x4	0.4~2000
UCMOS10000KPA	10M/MT9J003(C) 1/2.3"(6.44x4.616)	1.67x1.67	0.31v/lux-sec 65.2dB 34dB	1.9@3584x2748 8@1792x1374 27@896x684	1x1,2x2,4x4	0.4~2000
UCMOS09000KPB	9.0M/Special(C) 1/2.4"(5.825x4.369)	1.67x1.67	0.31v/lux-sec 65.2dB 34dB	11.9@3488x2616 8@1744x1308 27@872x654	1x1,2x2,4x4	0.4~2000
UCMOS08000KPB	8.0M/Special(C) 1/2.5"(5.451x4.088)	1.67x1.67	0.31v/lux-sec 65.2dB 34dB	1.9@3264x2448 8@1600x1200 27@800x600	1x1,2x2,4x4	0.4~2000
UCMOS05100KPA	5.1M/MT9P001(C) 1/2.5"(5.7x4.28)	2.2x2.2	0.53 V/lux-sec 66.5dB 40.5dB	5@2592x1944 18@1280x960 60@640x480	1x1,2x2,4x4	0.294~2000
UCMOS03100KPA	3.1M/MT9T001(C) 1/2"(6.55x4.92)	3.2x3.2	1.0 V/lux-sec 61dB 43dB	8@2048x1536 22@1024x768 43@680x510	1x1,2x2,3x3	0.244~2000
UCMOS02000KPB	2.0M/Special(C) 1/2.6"(5.12x3.84)	3.2x3.2	1.0 V/lux-sec 61dB 43dB	16@1600x1200 50@800x600	1x1,2x2	0.244~2000
UCMOS01300KPA	1.3M/MT9M111(C) 1/3"(4.60x3.7)	3.6x3.6	1.0V/lux-sec 71dB 44dB	15@1280x1024 26@640x512 50@320x256	1x1,2x2,4x4	0.14~2000
UCMOS01300KMA	1.3M/MT9M001(C) 1/2"(6.66x5.32)	5.2x5.2	2.1 V/lux-sec 68.2dB 45dB	20@1280x1024	1x1	0.14~500
UCMOS00350KPA	0.35M/MT9V011(C) 1/4"(3.58x2.69)	5.6x5.6	1.9V/lux-sec 60dB 45dB	30@640x480 80@320x240	1x1,2x2	0.111~192.6

OTHER HARDWARE CONFIGURATION
Spectral Range	380-650nm (with IR-filter)
White Balance	ROI White Balance/ Manual Temp-Tint Adjustment
Color Rendering Technique	Ultra Fine Color Engine
Capture/Control API	Native C/C++, C#, Directshow, Twain, Labview
Recording System	Still Picture and Movie
Cooling System*	Natural
OPERATING ENVIRONMENT
Operating Temperature	-10℃~ 50℃
Storage Temperature	-20℃~ 60℃
Operating Humidity	30~80%RH
Storage Humidity	10~60%RH
Power Supply	DC 5V over PC USB Port
SOFTWARE ENVIRONMENT
Operating System	Support Microsoft Windows XP / Vista / 7 /8 (32 & 64 bit) OS X (Mac OS X), Linux
PC Requirements	CPU: Equal to Intel Core2 2.8GHz or Higher
	Memory: 2GB or More
	USB port: USB2.0 High-speed Port
	Display: 17" or Larger
	CD-ROM
