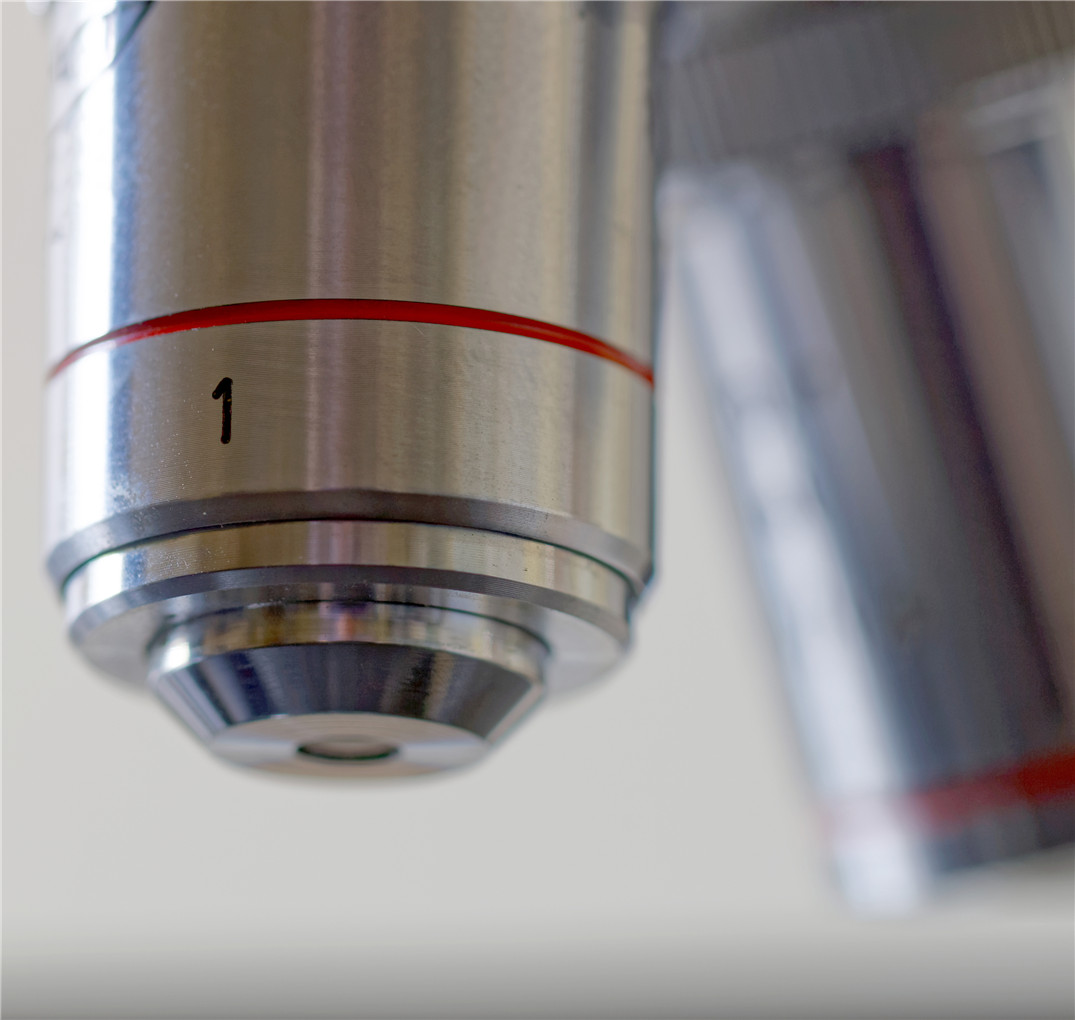

Metallurgical objectives
Product Description
- Standard Specification
- Optional Specification
- Related Product
- Download
|
Items |
Magnification |
numerical aperture |
Working distance (mm) |
Conjugate(mm) |
parfocal distance (mm) |
|
Plan objectives |
2.5X |
0.08 |
8.8 |
195 |
45 |
|
4X |
0.10 |
11.45 |
|||
|
10X |
0.25 |
8.10 |
|||
|
20X(S) |
0.40 |
0.84 |
|||
|
25X(S) |
0.40 |
1.16 |
|||
|
40X(S) |
0.65 |
0.66 |
|||
|
50X(S) |
0.75 |
0.45 |
|||
|
60X(S) |
0.75 |
0.43 |
|||
|
80X(S) |
0.80 |
0.14 |
|||
|
100X(S) OIL |
1.25 |
0.44 |
|||
|
LWD plan objectives |
4X |
0.10 |
24.30 |
195 |
45 |
|
10X |
0.25 |
14.60 |
|||
|
20X |
0.40 |
5.60 |
|||
|
40X |
0.60 |
3.25 |
|||
|
Infinity Plan objectives |
2.5X |
0.07 |
8.25 |
∞ F=180mm |
45 |
|
5X |
0.12 |
16.75 |
|||
|
10X |
0.25 |
6.75 |
|||
|
20X(S) |
0.40 |
0.95 |
|||
|
40X(S) |
0.65 |
0.57 |
|||
|
60X(S) |
0.75 |
0.39 |
|||
|
100X(S) |
0.85 |
0.32 |
|||
|
Infinity Plan objectives |
4X |
0.10 |
11.45 |
∞ F=200mm |
45 |
|
10X |
0.25 |
11.40 |
|||
|
20X |
0.45 |
0.90 |
|||
|
40X(S) |
0.65 |
0.53 |
|||
|
50X(S) |
0.75 |
0.41 |
|||
|
60X(S) |
0.75 |
0.46 |
|||
|
100X(S) |
1.25 |
0.28 |
|||
|
LWD Infinity Plan objectives |
2.5X |
0.07 |
9.20 |
∞ F=200mm |
45 |
|
5X |
0.12 |
13.0 |
|||
|
10X |
0.25 |
18.20 |
|||
|
20X |
0.40 |
10.50 |
|||
|
50X |
0.55 |
7.0 |
|||
|
100X |
0.72 |
2.30 |
