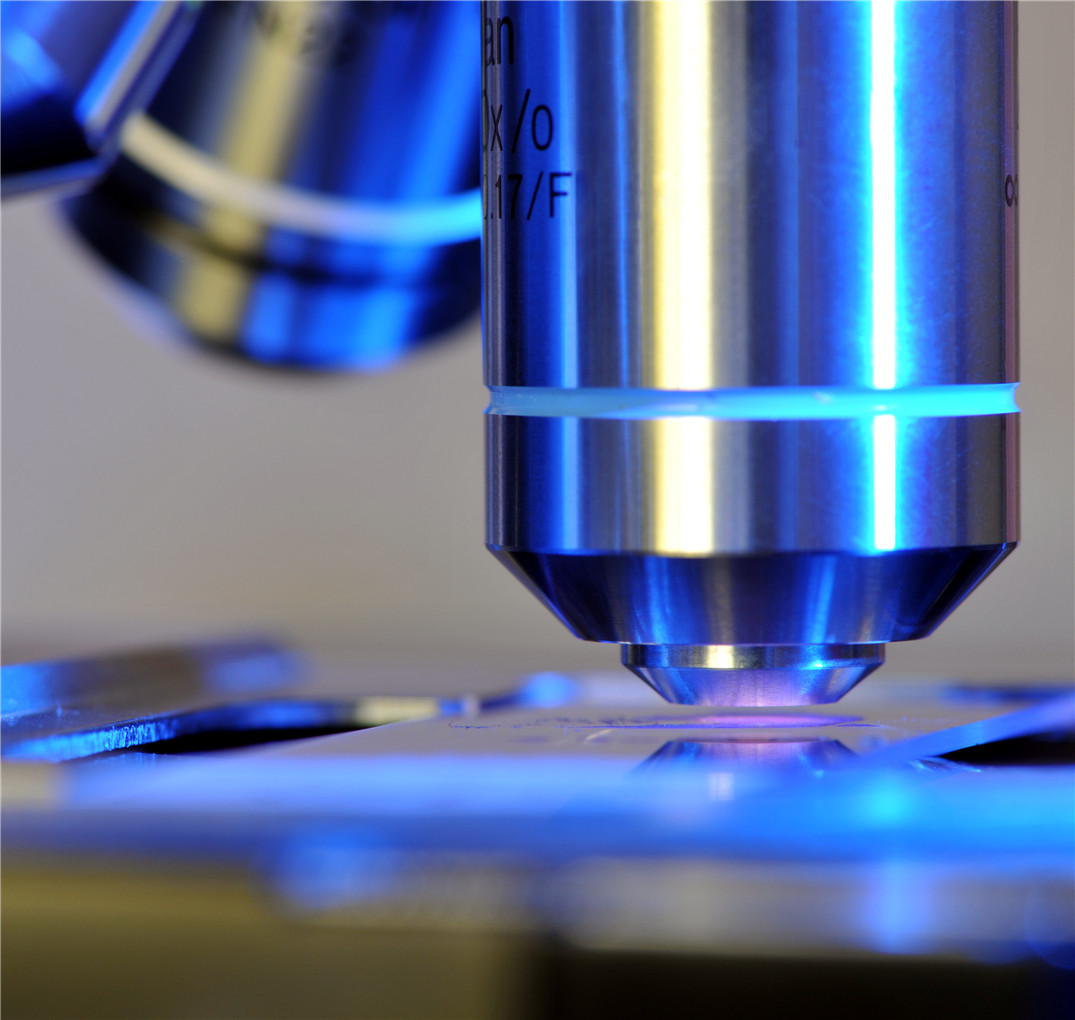

Biological objectives
Product Description
- Standard Specification
- Optional Specification
- Related Product
- Download
|
Items |
Magnification |
numerical aperture |
Working distance (mm) |
Conjugate(mm) |
parfocal distance (mm) |
Cover glass (mm) |
|
Plan Achromatic objectives |
2.5X |
0.08 |
8.8 |
195 |
45 |
0.17 |
|
4X |
0.10 |
11.45 |
||||
|
10X |
0.25 |
8.10 |
||||
|
20X |
0.40 |
0.80 |
||||
|
40X(S) |
0.65 |
0.60 |
||||
|
60X(S) |
0.75 |
0.30 |
||||
|
100X(S) OIL |
1.25 |
0.40 |
||||
|
LWD plan objectives |
4X |
0.10 |
24.00 |
195 |
45 |
1.10 |
|
10X |
0.25 |
14.00 |
||||
|
20X(S) |
0.40 |
5.00 |
||||
|
40X(S) |
0.60 |
2.10 |
||||
|
Infinity Achromatic objectives |
4X |
0.25 |
7.221 |
∞ F=180mm |
45 |
0.17 |
|
10X |
0.25 |
7.221 |
||||
|
20X(S) |
0.40 |
2.641 |
||||
|
40X(S) |
0.65 |
0.726 |
||||
|
100X(S),oil |
1.25 |
0.222 |
||||
|
Infinity Achromatic objectives |
4X |
0.10 |
21.00 |
∞ F=200mm |
45 |
0.17 |
|
10X |
0.25 |
8.10 |
||||
|
20X |
0.40 |
2.80 |
||||
|
40X(S) |
0.60 |
0.30 |
||||
|
100X(S),oil |
1.25 |
0.11 |
||||
|
Infinity Plan objectives |
2.5X |
0.07 |
8.20 |
∞ F=180mm |
45 |
0.17 |
|
5X |
0.12 |
16.5 |
||||
|
10X |
0.25 |
6.70 |
||||
|
20X(S) |
0.40 |
0.85 |
||||
|
40X(S) |
0.65 |
0.44 |
||||
|
60X(S) |
0.75 |
0.25 |
||||
|
100X(S),oil |
1.25 |
0.25 |
||||
|
Infinity Plan objectives |
4X |
0.10 |
11.40 |
∞ F=200mm |
45 |
0.17 |
|
10X |
0.25 |
11.40 |
||||
|
20X |
0.45 |
0.90 |
||||
|
40X(S) |
0.65 |
0.50 |
||||
|
60X(S) |
0.75 |
0.38 |
||||
|
100X(S)Oil |
1.25 |
0.25 |
