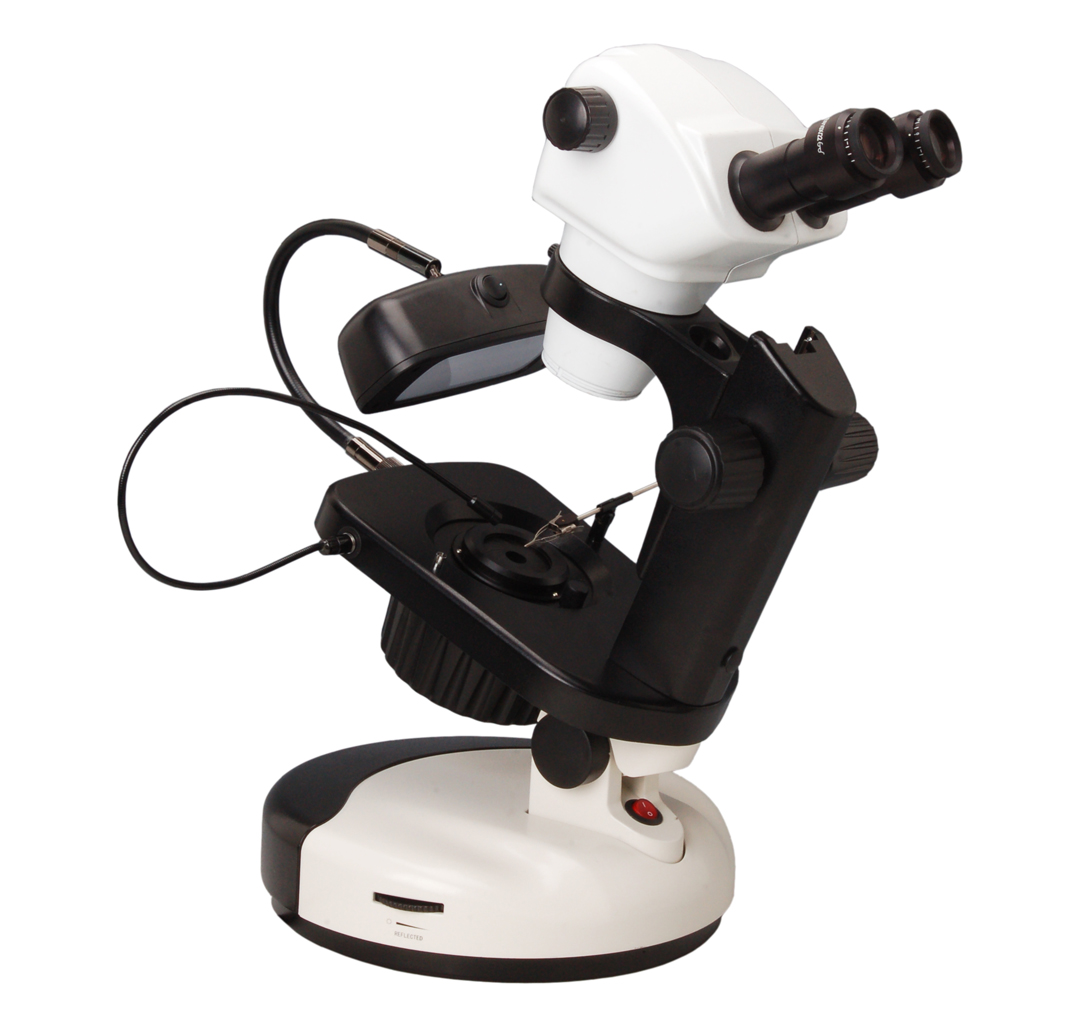

MOJ-800
Product Description
- Standard Specification
- Optional Specification
- Related Product
- Download
|
Items |
Specification |
MOJ-800 |
|
Stereo Zoom Body |
Zoom objective 0.8X-5X, Zoom ratio 1：6.3, Working distance115mm |
● |
|
Eyepiece |
Extra wide field eyepiece WF15X/Φ16 with diopter adjustment |
● |
|
Bright & Dark |
Iris diaphragm 2mm-41mm,Bright and dark viewing field illumination adjustable |
● |
|
Illumination |
7W Fluorescent lamp |
● |
|
LED Point Light |
● |
|
|
6V/20W Halogen illumination |
● |
|
|
Focusing |
Focusing range: 110mm Suitable for observing different size gem and sample |
● |
|
Gem Clamp |
Quality steel clamp to hold the gem for all direction observations of gems |
● |
|
Stage |
Two gem clamp fixing holds for you to choose |
● |
|
Stand |
0-38°Rotatable, eye point height and angle adjustable |
● |
|
Base |
0°-325°Rotatable |
● |
