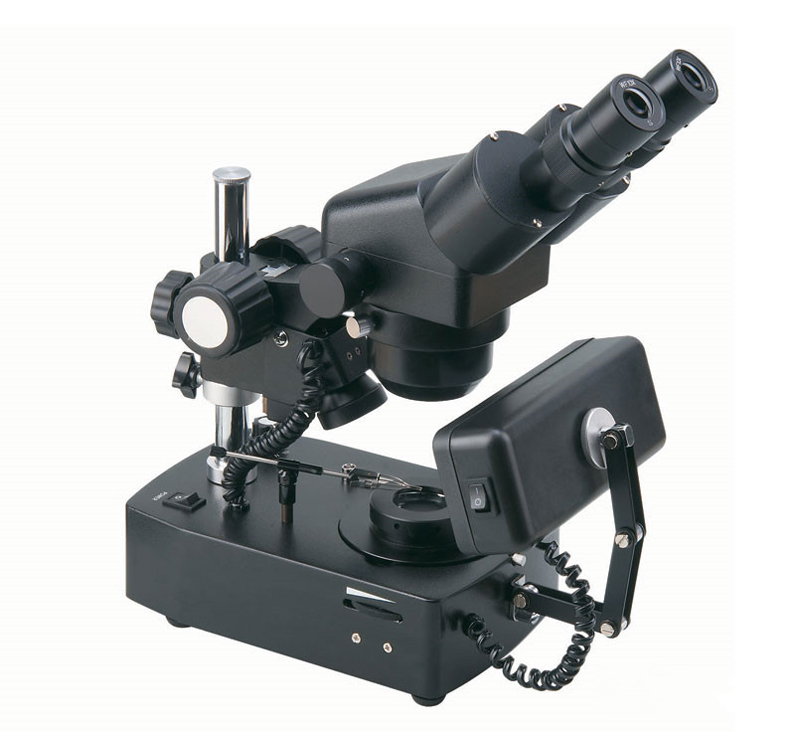

This high quality microscope is designed for professional jewelers and gemologists. It includes a super wide field zoom stereo microscope head, jewelry/gem tweezers, dark field iris condenser and professional GEM stand. The microscope is illuminated with a 10W incident light, a 10W dark field halogen light built into the base and a 10W rectangular fluorescent incident light box, providing rich spectrum, high-temperature color and close-to-daylight illumination. The incident light box shines light down onto objects, used to observe the surface details and fine structures of jewels or gemstones. The transmitted light through the dark field condenser is designed for the examination of the inside quality of diamonds
MOJ-500
Product Description
- Standard Specification
- Optional Specification
- Related Product
- Download
|
Items |
Specification |
MOJ-500 |
|
Viewing Head |
Inclined Binocular |
● |
|
Inclined Trinocular |
○ |
|
|
Head 360° Rotatable |
● |
|
|
Eyepiece |
SWF10XØ22MM |
● |
|
WF10XØ20MM |
○ |
|
|
WF15XØ15MM |
○ |
|
|
WF20XØ10MM |
○ |
|
|
Objective |
1X-4X |
● |
|
0.75X～3.6X |
|
|
|
Auxiliary Objective |
0.75X |
○ |
|
0.5X |
○ |
|
|
1.5X |
○ |
|
|
2X |
○ |
|
|
Working Distance |
90mm |
● |
|
Incident light |
Halogen lamp 12V/10W |
● |
|
Fluorescent 10W |
● |
|
|
Transmitted light |
LED |
○ |
|
Halogen lamp 12V/10W |
● |
|
|
Accessory |
Jewel Tweezer |
● |
|
Dark field Attachment |
● |
